LN03T LED linear light detail
Performance Parameters
Luminous Efficiency: 160lm/W
LED Type: 2835 LED, Epistar/Philips
Input Voltage: AC200-240V, 50~60Hz
CCT: 2700~6500K
CRI: >80
PF: >0.95
Beam Angle: 30°/60°/90°/120°/Double 25°/asymmetric L or R / 120°（frosted cover）
Driver Brand: Isolated Driver
Working Temperature: -20℃-48℃
Lamp style
Linear Trunking System is an innovational
LED light, it is environmentally-friendly,
energy saving, bright and it is economical
but looks luxurious, widely used to
replace traditional flflood light, flfluorescent
lamp in supermarket, mall, warehouse,
office, hospital, school etc.
Linkable

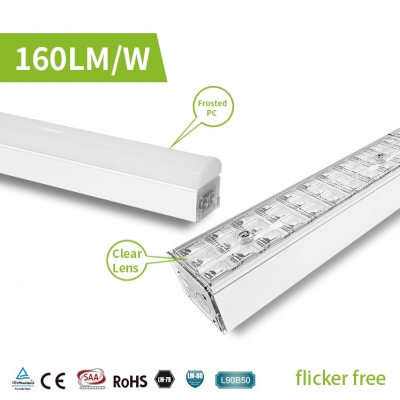

Difffferent diffffuser for difffferent distribution
1-10V Dimmable
1. Support IOOK potentiometer dimming
2 Support 1-10V/10V PWM dimming
3. Support sensor dimming
4. No stroboscopic at any brightness, in line with non-strobosc
opic standards
(IEEE Std 1789-2015)
5. The minimum dimming brightness is 3%
6. Boot time is less than 0.5s, standby power is less than 0.5W
Product Model
| Model |
Length |
CCT |
Size(mm) |
Carton (mm) |
G.W. |
| SL-LL2-30W-L060-3-SG-DM |
60cm (2 feet) |
2700K ~6500K |
L583.5*W80.7*H56.7 |
L635*W205*H180 |
5.5kg/4PCS |
| SL-LL4-40W-L060-3-SG-DM |
120cm (4 feet) |
L1138.5*W80.7*H56.7 |
L1200*W205*H180 |
10.5kg /4PCS |
| SL-LL5-60W-L060-3-SG-DM |
150cm (5 feet) |
L1438.5*W80.7*H56.7 |
L1490*W205*H180 |
12.0kg/4PCS |
| SL-LL2-30W-LGOO-3-SG-DM |
60cm (2 feet) |
L583.5*W80.7*H89.8 |
L635*W205*H240 |
5.5kg/4PCS |
| SL-LL4-40W-LGOO-3-SG-DM |
120cm (4 feet) |
L1138.5*W80.7*H89.8 |
L1200*W205*H240 |
10.5kg/4PCS |
| SL-LL5-60W-LGOO-3-SG-DM |
150cm (5 feet) |
L1438.5*W80.7*H89.8 |
L1490*W205*H240 |
12.0kg /4PCS |
